MODEL |
9" X 9" |
10" X 10" |
10 5/8" X 10 5/8" |
10" X 12" |
|---|---|---|---|---|
AIRFLOW ( CFM ) |
1500 |
2500 |
3000 |
4000 |
POWER (W) |
187 W |
350 W |
370 W |
370 W |
SPEED |
THREE SPEED |
THREE SPEED |
THREE SPEED |
THREE SPEED |
DIMENSION (W X L X H) |
387*337*340 |
395*380*400 |
405*380*400 |
415*490*510 |
NECK SIZE (LXW) mm |
150 x 288 |
170 x 305 |
170 x 340 |
194 x 380 |
PHASE |
SINGLE |
SINGLE |
SINGLE |
SINGLE |
VOLTAGE |
230V |
220V |
220V |
230V |
Riveted / Winding Construction
2" to 15" (52 mm to 460 mm Diameter)
Installation in Scroll Housing
Single and Double Width Construction
Compatible with Various AC/EC Motors 50/60HZ
High Static Efficiency
Performance Characteristics : Airflor upto 6000 CFM
Applications : Air - Conditioning System (HVAC/AHU), Desert Cooler, Household Appliances, Heating and Ventilation.

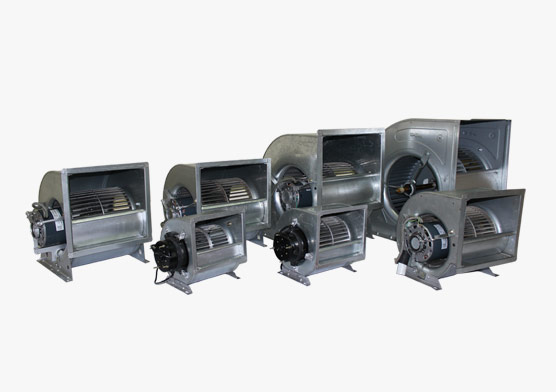

The Blower of REW Series is made of Aluminum or Galvanized Steel Sheets as forward Curved Blades, the wheels specially profile to obtain a maximum efficiency and low noise level.
MODEL |
6" X 6 1/2" |
7" X 7" |
8" X 8" |
|---|---|---|---|
AIRFLOW ( CFM ) |
600 |
1000 |
1200 |
POWER (W) |
110 W |
110W |
130W |
SPEED |
THREE SPEED |
THREE SPEED |
THREE SPEED |
DIMENSION (W X L X H) |
265*242*246 |
293*260*264 |
334*308*327 |
NECK SIZE (LXW) mm |
110 x 200 |
130 x 228 |
155 x 253 |
PHASE |
SINGLE |
SINGLE |
SINGLE |
VOLTAGE |
230V |
230V |
230V |
