Laminar Air Flow

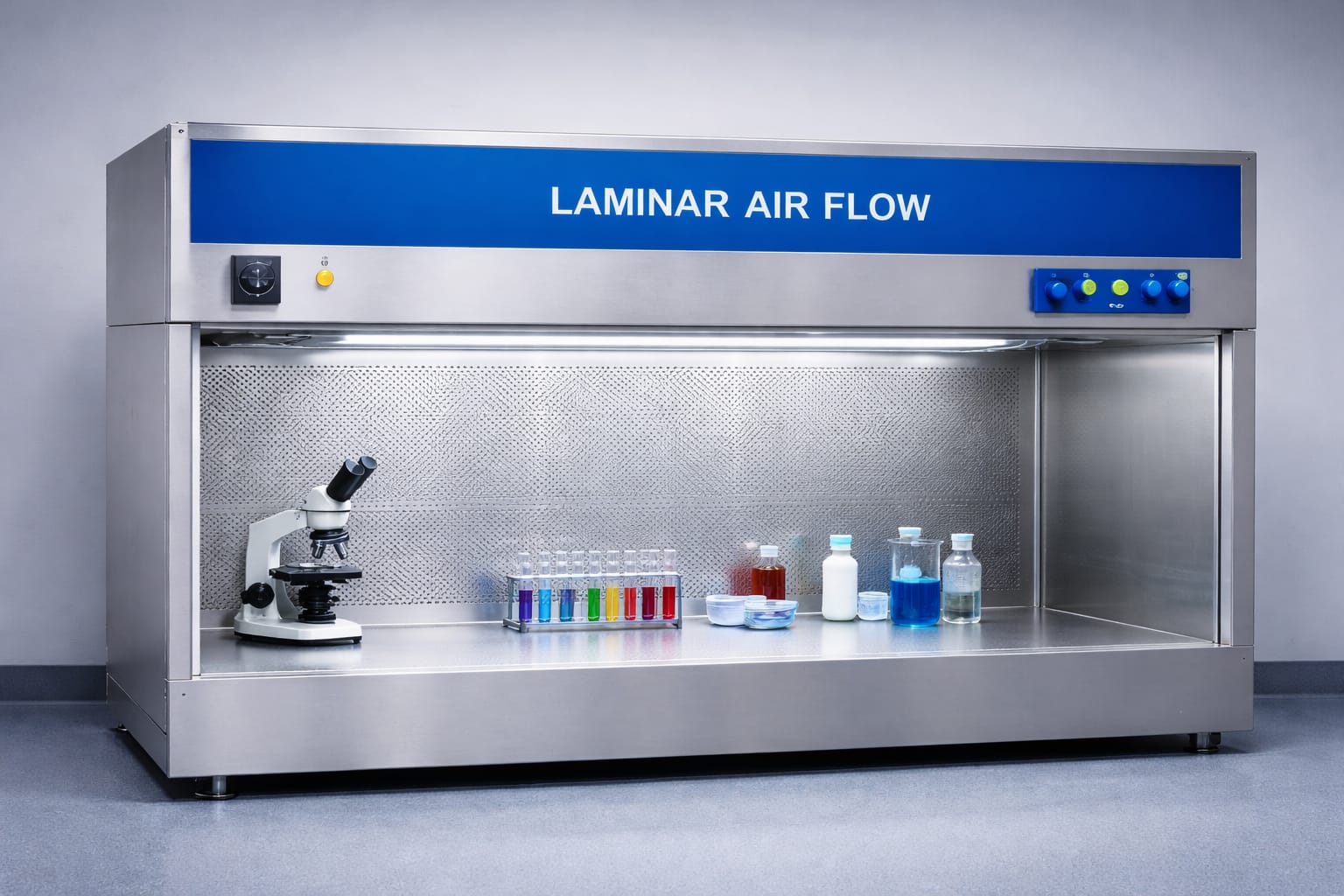

Horizontal Laminar Air Flow Unit
ROYAL AIRCON (HLAF) is suitable for the handling of non hazardous products, sensitive to dust and to avoid contamination in facilities such as injectable medicines, cell and tissue cultures, etc.
Horizontal Laminar Air Flow Workstation is designed specifically for highest product protection by providing ISO Class 5 particle free work area for handling critical process. The Laminarity of the flow prevents cross contamination between the items handled in the working space.
Operating Conditions
Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
Air Velocities: 0.45± 0.05mps
Light Intensity: >300 lux
MOC : SS 304/ SS 316/ SS 316 L
| Standard Models | Work Area Dimension (L × W × XH) |
|---|---|
| HLAF-36-24-24 | 915 X 610 X 610 MM |
| HLAF-48-24-24 | 1220 X 610 X 610 MM |
General Specifications
- Glass / Polycarbonate Side panels
- Two Stage filtrations
- SS 304 work table with due reinforcement
- Fluorescent Light with Milky White Diffuser
- DOP Test Port
- 5/15 Amp Switch Socket for external equipment
Options & Accessories
- Front doors (hinged/pneumatic cylinder)
- U. V. Light with Hour meter.
- SS 304 Air/Gas Cock.
- Night Mode Operation
- Filter blocked alarms (audible and visible)
- Explosion proof electrics for Flame-proof applications

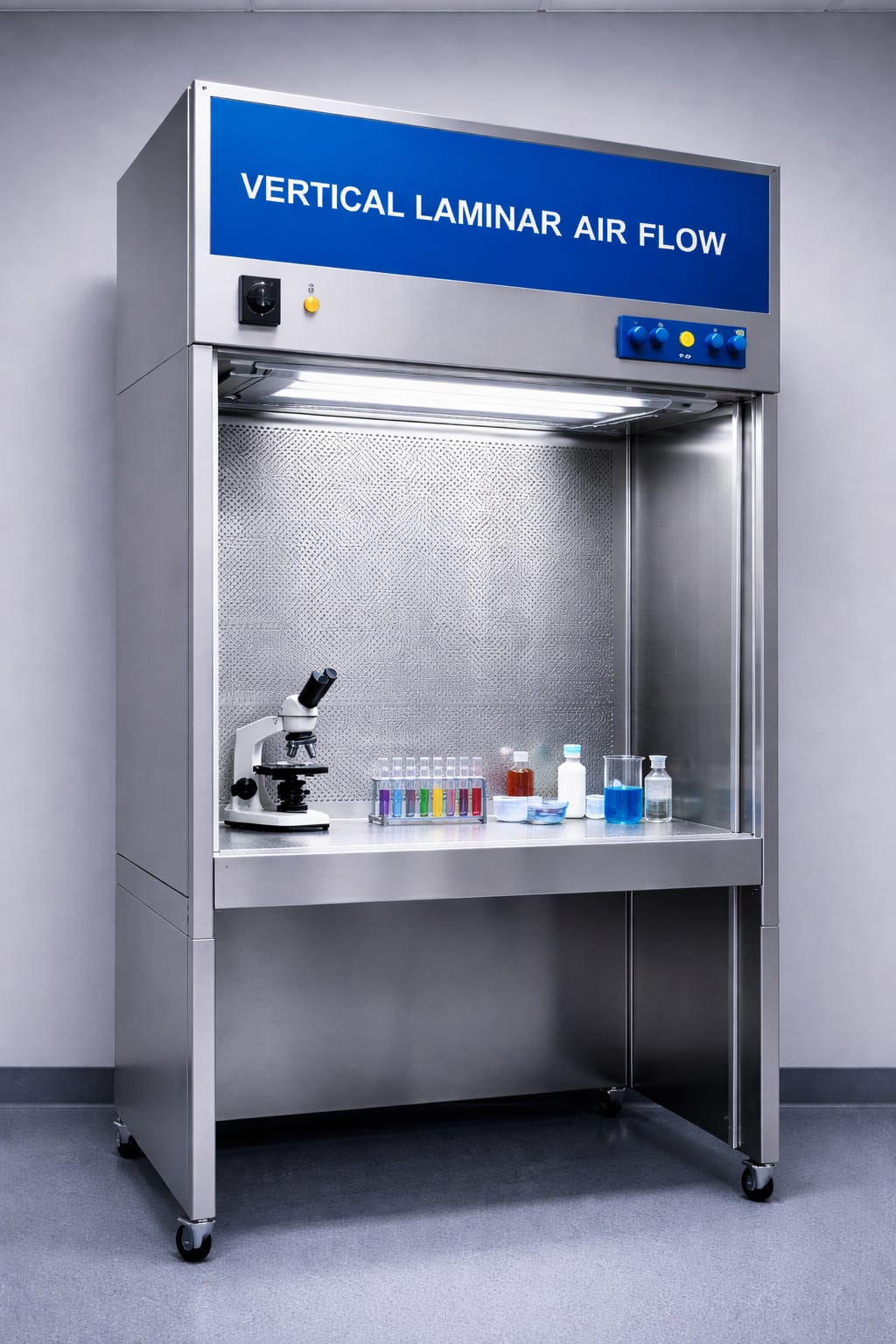

Vertical Laminar Air Flow Unit
Operating Conditions
Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
Air Velocities: 0.45± 0.05mps
Light Intensity: >300 lux
MOC : SS 304/ SS 316/ SS 316 L
| Standard Models | Work Area Dimension (L × W × XH) |
|---|---|
| VLAF-36-24 | 1015 X 760 X 685 MM |
| VLAF-48-24 | 1320 X 760 X 685 MM |
Options & Accessories
- Stand mounted VLAF can be provided upon request.
- U. V. Light with Hour Meter
- SS 304 Air / Gas Cock
- Night Mode Operation
- Velocity display with alarms (audible and visible)
- Filter blocked alarms (audible and visible)
- Explosion proof electrics for Flame-proof applications
General Specifications
- Two Stage filtration
- SS 304 work table with due reinforcement
- Glass / polycarbonate side panels
- Fluorescent Light with Milky White Diffuser
- Clean Down Timer with Operation Hold Indicator
- DOP Test Port
- 5/15 Amp Switch Socket for external equipment

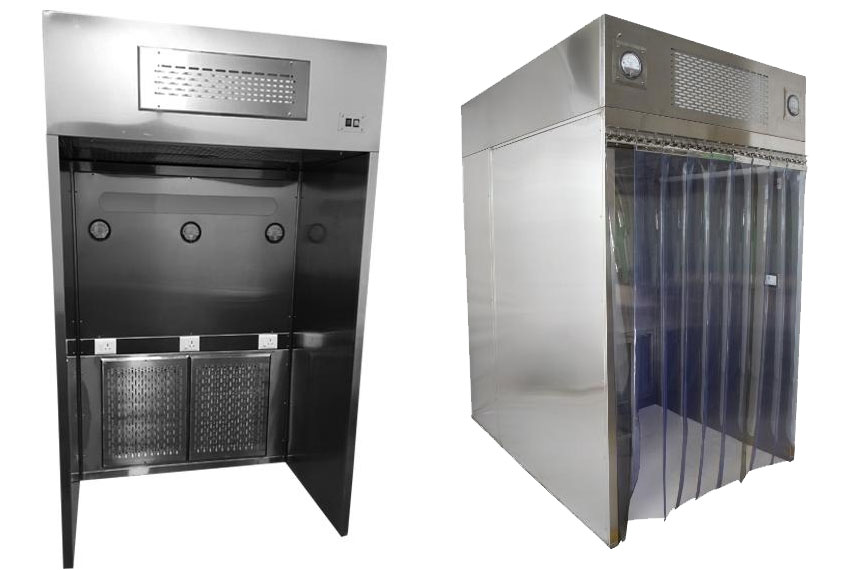

Reverse Laminar Air Flow Unit
ROYAL AIRCON (RLAF) is designed for providing highest level protection from airborne contaminants generated during powder handing operations such as sampling, charging and dispensing.
The system operates on a recirculatory airflow principle providing containment by air movement. The prefilters at the base of the rear wall capture the airborne contaminants generated. Intake velocity at prefilters ensuring increased scavenging effect.
Operating Conditions
Air cleanliness: ISO Class 5 (ISO 14644-1:1999 (E))
Air Velocities: 0.45± 0.05mps
Light Intensity: >300 lux
MOC : SS 304/ SS 316/ SS 316 L
| Standard Models | Work Area Dimension (L × W × XH) |
|---|---|
| RLAF- 48- 48 | 1220 X 1220 X 2135 MM |
| RLAF- 72- 48 | 1830 X 1220 X 2135 MM |
Options & Accessories
- Double skin solid side panels with/without view windows
- Stainless steel perforated grille for supply
- HEPA Filters
- Front Anti Static PVC Curtains (for warehouse applications)
General Specifications
- Triple Stage Filtration
- Fluorescent Lights with Milky White Diffuser
- Clean Down Timer with Operation HOLD indicator
- DOP Test Port
- 5/15 Amp Switch Socket for external equipment
